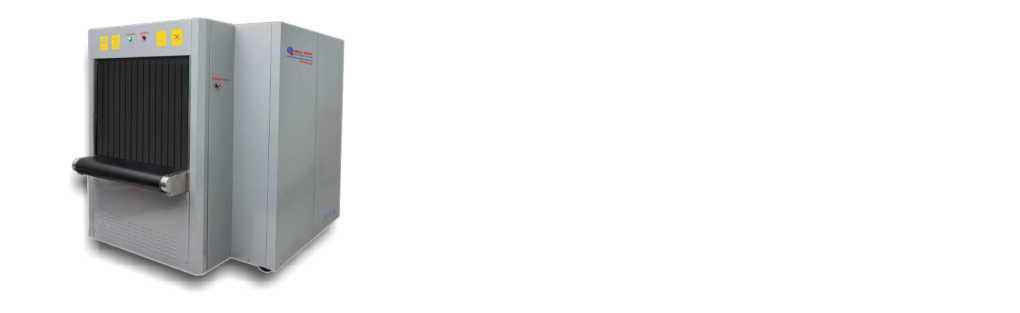

Advance Technology X-ray Baggage Scanner
Model: AT100100-3D
The performance advantages:
- Use 3 generator to penetrate packages from different direction: Left to right, right to left and bottom to
up. Based on these perfect design, our device can present 3 different view of one scanning, from 3
different dirction.
- AT100100-3D, completely solve the security risks of traditional X Baggage Scanner. Its impossible to
cheat the device to hide any dangerous articles.
- More powerful software algorithm, can give much more accurate alarm to explosives and drugs.
- More powerful to distinguish the slight difference of organic articles, for example can distinguish water and gasoline.
- Can present better shape of articles
- Can find threats beneath the laptop.
- Ultra high scan speed, scan 2000 to 2300 bags / hour.
- AT100100-3D is an powerful device for high security locations.
General Specification
- Tunnel Size: 1050(W)*1050(H)mm
- Conveyor Speed: 0.50m/s
- Conveyor height :820mm
- Conveyor Max Load: 200kg (75kg/m²)
- Dose per Inspection<14µSv per inspection
- Wire Resolution:40AWG
- Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
- Penetrate Resolution: 38AWG
- Penetration: 40mm Steel
- Film Safety: Guarantee ISO1600 Film(33 DIN)
- X-ray Leakage < µSv /h at the distance of 5 cm, 2” from external housing
- Operation Cycle: 100%,[start –up time about 1-2 for boot procedure and self-tests]
- Throughput : Typically 2000 to 2300 items/hr
- Data recording mediums : No damage to computer memories, such as cassettes, floppy disks or hard disks due to x-rays.
- X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
- Monitor: High Resolution Colour, LCD Accord, 17 inch
X-ray Generator
- Generate quantity: 3 pieces of generator in difference direction. Beam direction :vertical and horizontal
- Anode Voltage: 100~160Kv
- Anode power: 0.4 to 1.2mA
- Cooling / Duty Cycle: Oil Cooling /100
Installation Data
- Operation temperature/Humidity: 0. to
- 40./10%-90%(non-condensing)
- Storage Temperature/Humidity: -20. to 60./10%-90%(non-condensing)
- Operation Power: 220VAC(±10%)50±3Hz
- Power Consumption: <3KVA
- Noise: <58db
- Input / output extension Roller
Software System
- Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
- Threat Image Projection software
- Screeners assist Threat Detection System.
- Remote workstations
- Supervisor workstation
- Automated explosive threat detection system
- Image Grey Level: 4096
- Image Max Resolution: 1024 * 1280 pixel
- Image Processing: 24bit for processing real time
- Image storage: Storage 100000 pictures in real time
- Zoom: 64 Times Enlarge, Whole screen continuous observation
- Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
- Automatic explosive detection system, by means of high performance parallel computing
Scanning image for reference
