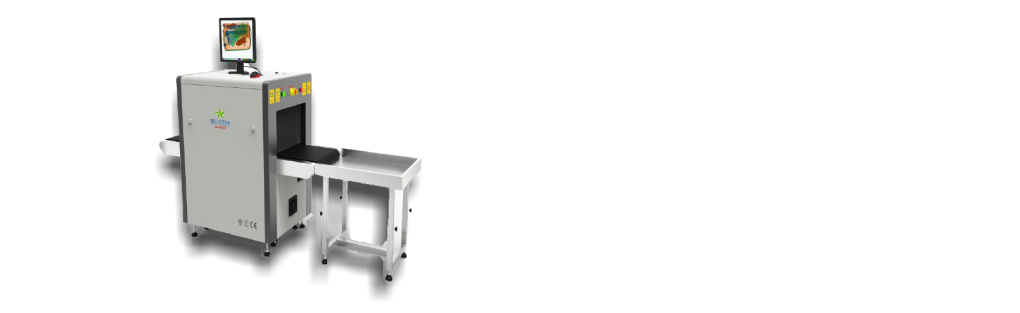

JC 5030C (Dual Energy)
General Specification
- Tunnel Size:500 (W) *300 (H) mm
- Conveyor Speed: 0.22m/s
- Conveyor Max Load: 170kg
- Dose per Inspection: <1.7µGy/h
- Resolution: 38 AWG Guaranteed 40 AWG typical
- Spatial resolution:Level:dia1.0mm, Vertical:dia1.3mm
- Penetration : 32mm Steel
- Film Safety: Guaranteed ISO 1600 Film
- X- Ray Leakage:< 0.1µSv/h (at a distance of 5cm From external housing)
X-Ray Generator
- Generator direction: Upward
- Generator angle: 80degree
- Anode Voltage: 140Kv
- Cooling/Duty Cycle: Oil Cooling/100%
Image System
- X-ray Sensor: L-Shaped Photodiode Array (multi-energy)12 bit Deep
- Image Processing: Edge enhancement , image strengthening, image lightening, reducing darkening ,image Image retrieval with Sound and alarm indication for dangerous objects.
- Image Max Resolution: 1024 x 1280 pixels
- Grey Level is 4096 Image Processing: 24 bit processing in real time
- Image storage: 120000 pictures in real time Zoom:2 to64 Times Enlarge,
- Whole screen continuous observation
- Multi-energy: organic objects in orange , inorganic objects in blue and mixture in green
- High-energy/ low energy: switch from high energy to low energy.
- Assist to detect drug and explosive powder
Computer specs
- CPU: Intl Core2Duo 3400 , 2.6GHz , 1MB, L2 Cache and 800Mhz FSB Little low version
- Motherboards: Intel G41
- Bus architecture: Integrated Graphics, 5PCI, 1PCIExpress *1 and1 PCI BExpress*16
- Memory: 2GB 1333 MHz DDR3RAM, with Minimum 2 total DIMM slots.
- Hard Drive: 500 GB 7200 rpm serial ATA HDD.
- Operating System: Windows XP
- Monitor: 17inch, DELL brand.
- High Resolution Color, LCD
Installation Data
- Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
- Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
- Operation Power: 220 VAC (±10%) 50 ±3Hz
- Power Consumption: 1.0 KW(max), 0.3KW(working).
- Noise: < 55db
