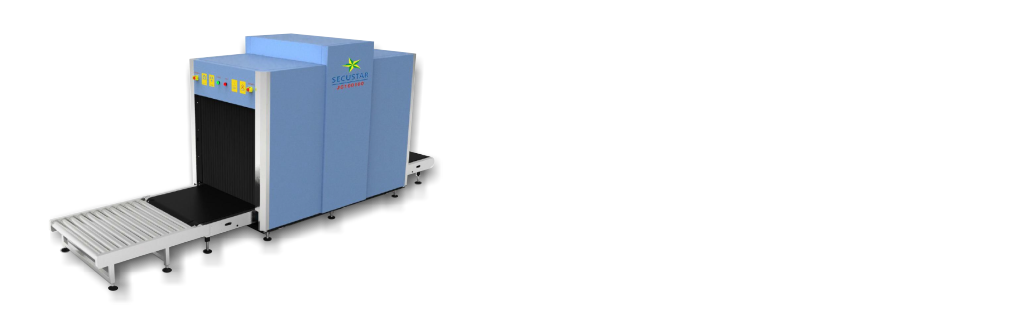

JC100-100

Model :JC100100

General Specification:

  • Tunnel Size: 1000mm~1000mm
  • Conveyor Speed: 0.23m/s
  • Conveyor height: 330 mm
  • Conveyor Max Load: 210kg
  • X ray Dose per inspection: <0.5uGy
  • Wire Resolution: 38 AWG Guarantee 40 AWG typical
  • Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
  • Penetration: 38mm steel guaranteeB
  • Penetration Resolution: 32 AWG ,the wire visible below 22mm thick aluminium
  • Film Safety:Guaranteed ASA/ISO1600 Film
  • X-ray Leakage: <0.1 ƒÊGVy/h (at a distance of 5cm from external housing)

Image System:

  • Technical Principle: Dual-energy X-ray Imaging; Double L Shaped Array, Image Display: High resolution of 1280~1024;
  • Image Enhancement: 1-64 times enlargement continuity, Colour / BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo colour, etc.
  • Image Recall: All preceding images recallable
  • Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
  • High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
  • Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
  • Image Archive: Up to 120,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
  • Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
  • Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
  • Images process:24bit real time processing ,5 colours analysis, Images displayed marked date and ID NO , Count the number of bags , Memory gray level:65536. The system is one key to boot and E-ghost to install system again (Back up)

X-ray Generator

  • Generator direction: from top to bottom
  • Anode Voltage: 140-160kv (adjustable)
  • Cooling / Duty Cycle: Oil Cooling /100%
  • X ray generator imported from USA

Computer Character

  • CASE: chassis ATX/Matx chassis
  • Power: 80+bronze ps/2 sps 300w ATX (DELTA)ROHS
  • Main board: H61, LAG 1155 Micro ATX, 2VGA/LVDS/(DVI optional)/10*com/1*LPT/2GeLAN/PCI/
  • PCIe/AMP/10*USB
  • CPU: Celeron 2.5G 3m 1155p G540(G)
  • Storage: 2G DDR3-1333 240PIN 256X8 HYX(g)TS 5KNN 28100-3Y
  • Hard Disk: SEAGATE 500G 3.5″ IDE 5KRPM(G)
