Dual View System

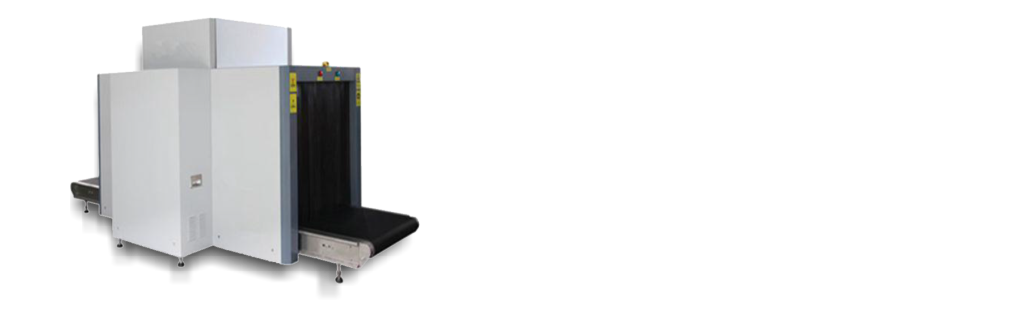

JC100100DV X-ray security system is very convenient and effective solution for places where there is a need of control of heavy load and parcel.
This x-ray machine has an easy loading design with its lower deck pallet of just 33 cm height.
The JC100100DV X-ray baggage scanner will be optimal solution for customs facilities, airports, logistics companies and parcel services or wherever security screening of heavy packages is required.
It guarantees small footprint, high throughput and effectiveness of screening process.
Automatic color coding of materials with different atomic numbers facilitates substantially the process of image analysis and the detection of potential threats:
narcotics, arms and weapons, explosives and smuggled goods.
Machine general specification
Basic Items Technical data
- Tunnel Size (W)105cm × (H)105cm
- Conveyor Speed 0.22m/s
- Conveyor Height 330mm height
- Conveyor Load Max 210KG
- Wire Resolution 38AWG(standard) ,40AWG(typical)
- Spatial Resolution Horizontal 1.0 ,Vertical 1.0mm
- Penetration 35mm steel
- Film Safety Guarantee ISO1600 Film
- Per-inspection Dose <1.7µGy/h
- X ray Leakage <0.5µSv/h (at a distance of 5cm From external housing)
- Pass rate Scanning 820 bags per hour
Detector diodes number High energy 1152, low energy 1152,total 2304
X ray generator specification
- Beam direction Downward/Side
- Generate angle 80 degree
- Anode Voltage 160kv adjustable
- Anode Power 0.4-0.5mA
- Cooling/Duty cycle Oil cooling 100%
Operation and Installation condition data
- Operation temperature/humidity 0.-45./20%-95%(non-condensing)
- Storage temperature/humidity -20.-60./20%-95%(non-condensing)
- Operation power 220VAC(±10%)50±3Hz
- Power Consumption 2.0 KW (max), 1.5KW(working).
- Noise <60 db
- Dimension size L3900cm *W 1735cm *H 1790cm
- Weight 1200kg
NO. Software Functions & Features
- Software operation safe management by password-protected logon
- Self-testing and performance support is automatic self –testing.
- Display message about operating status of the scanner , eg.
- Warming up x ray generator(the process can be started both manually and automatically
- Hardware control : controlling the conveyor belt drive, the protective shutter’s drive, x ray tank
- Automatic changing of generator’s operating modes depending on the scanner idle time
- Acquiring data from the x ray detector
- Automatically calibrating the x ray detector
- Turning off the x ray generator in case of emergency
- Indicating x ray on, Highlighting optically dense objects
- Digital x ray images acquisition, visualization and processing functions
- Adjusting contrast of strongly absorbing objects
- Inverting images and performing gamma-correction of images
- Controlling quality of operator’s performance with TIP program module
- Counting inspected baggage automatically, make users work records
- Colouring images according to calculated values of atomic numbers of substances which compose objects under inspection ,Atomic number 7.8.9 alarm for explosives, drugs, bombs.
- Images edge enhancement and local contrast enhancement algorithms ,image returning, image retrieval, reducing darkening, gray scanning, image lightening and image strengthening .
- Display 5 kinds of main colour ,black is hard penetration substances, mix material is green,orange is organic , blue is inorganic ,and purple is explosive and drugs (atomic no 7.8.9 substances )
- Zooming images up to 64x, image processing is 24bit for processing real time, grey level 4096
- Saving x ray scanning images to files, image storage 120000 pictures in real time
- Search for scanning history records, viewing and coping images from local area network, import and export files and images ,connect to printer to print reports.
Computer specifications:
- Power: 80+bronze ps/2 sps 300w ATX(DELTA)ROHS
- Motherboard:H61,LAG1155MicroATX,2VGA/LVDS/(DVI optional)/10*com/1*LPT/2GeLAN/PCI/PCIe/AMP/10*USB
- CPU: Celeron 2.5G 3m 1155p G540(G)
- Storage: 2G DDR3-1333 240PIN 256X8 HYX(g)TS 5KNN 28100-3Y
- Hard Disk: 500Gig
