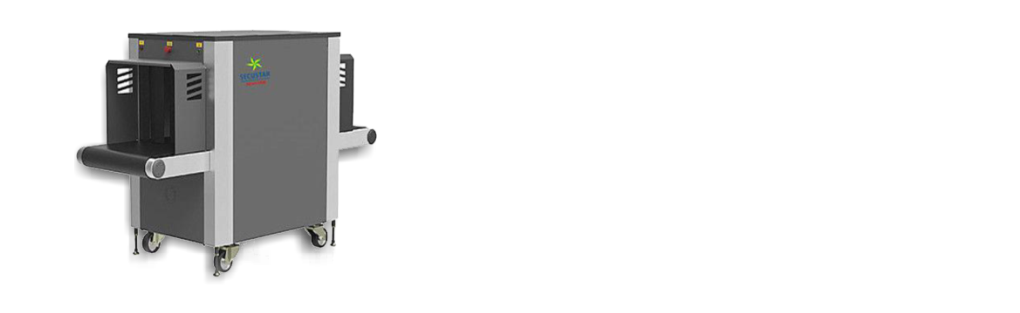

Model: X-ray Inspection System SECUSTAR – JC6040
SMALL BAGGAGE / HAND CARRIED ITEMS
This product is designed for tourist attractions, shopping malls, supermarkets, sports centres, large venues, hotels, railway stations, docks, airports, prisons, public security
and other crowded places.
Strict internal quality control, engineering and production for the implementation of the principle of the safeguards by the European Union CE certification through the ISO 9001 quality management system certification and ISO 14001 environmental management system certification by OHSMS 18001
Occupational health and safety management system certification through the National Ministry of Public Security Testing Centre by the Guangdong Provincial occupational health Testing Centre for national radiation
Safety license certification and State Intellectual Property Office for a number of utility model patents. The State Copyright Bureau of computer software registration certificate for products unique advantages.
- International Brands Accessories: USA Spellman x-ray sources, Finland DT detectors, Germany
- INTERROLL roller, with more stable system performance;
- Leading Technology: Faster parallel data transmission technology, compared with other similar products (10-20 times)
- Fully Functional: networking capabilities, image storage and printing output functions and can also be customized according to customer demand.
- Easy to Use: the simple user-friendly interface, allowing users to easily use the device;
- HD Display: with high-definition 17″ LCD display, an image displays more delicate, resolution of 1920 x 1080;
- Mass Storage: direct to disk storage quantities greater than 150 000
- Energy Saving and Environmental Protection: the machine can automatically sense objects when placed on the conveyor belt and will automatically stop after 4 seconds when there is no luggage on the belt
- Off Key: simply rotate the shutdown key, and the device will automatically shut down safely
- Environmental Design: Lead curtains to prevent radiation leakage
- Intelligent Conveyor : When putting the bags on conveyor, the machine will start to work automatically.
Basic Parameters:
- Tunnel size 615 (width) x 418(H) mm
- Conveyor speed 0.2 ± 0.02 m / s
- Conveyor height 680mm
- Penetration is 35-38mm steel
- Wire resolution is 40AWG guaranteed
- Conveyor Max Load 170 kg
- Machine safety with film up to ISO 1600
X-Ray Generator:
- Generator Beam – Upwards
- Tube current 0.4 ~ 1.2 mA (adjustable)
- Tube voltage 140 ~ 160 kV (adjustable)
- Ray beam divergence angle of 80 ‹
- Cooling / working periods sealed oil cooling / 100%
- Single Dose Rate: < 0.05 µGy
- X-Ray Leakage: <0.1 µSv/h (at 5 cm from external housing)
Image Processing System Parameters:
- X-ray sensor L-shaped photo diode array detection (single energy), 24bit depth
- Display high-resolution – 17″inch LCD display, Tidy and completely high clear colour image.
- Colour images displaying 24-bit true colour display
- Edge enhancement makes contour edges of objects more clear
- Super image enhancement makes image details more clear and gray scanning to distinguish materials.
- High penetration displays image contrast in bright areas to improve, so as to penetrate the area clearly
- Low penetration display improves image contrast in dark areas, so as to penetrate the area more clearly
- Magnifier local amplification – just need to move and drag the mouse over the image to enlarge image
- Brighten / increasing the brightness of dark images / dimming the brightness of bright images
- Image Retrieval / Retrieve any stored image and still be able to manipulate the image using the processing functions
- Image restore/ image display restored to its original state
- Save any image in real time
Use of The Environment Parameters:
- Operating voltage 220 VAC (± 10%) 50 ± 3 Hz
- Power consumption 0.8 KW (Max)
- Noise level <60 dB
- Operating temperature/humidity 0° – C45°C/20%-95% (inon-condensing)
- Storage temperature/humidity -20°C – 45°C/20%-95% (inon-condensing)
