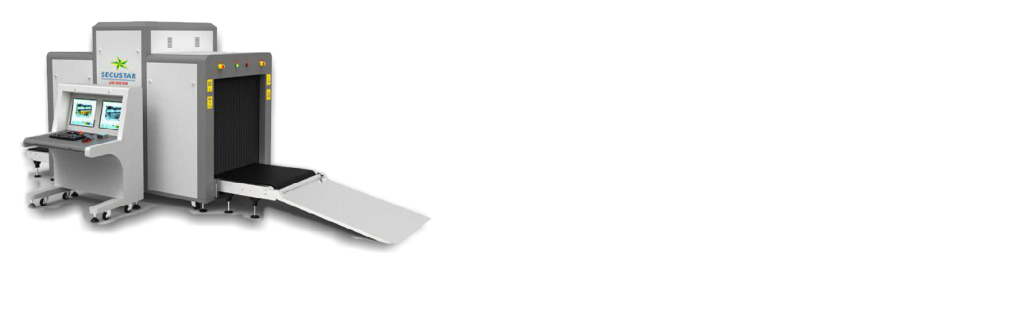

JC8065
Model :JC8065
General Specification
- Tunnel Size: 800mm×650mm
- Conveyor Speed: 0.23m/s
- Conveyor height: 330 mm
- Conveyor Max Load: 200kg
- X ray Dose per inspection <0.5uGy
- Wire Resolution: 38 AWG Guaranteed 40 AWG typical
- Spatial resolution Level: dia1.0mm, Vertical: dia1.0mm
- Penetration: 32mm steel guaranteed
- Penetration Resolution: 32 AWG ,the wire visible below 22mm thick aluminium
- Film Safety: Guaranteed ASA/ISO1600 Film
- X-ray Leakage: <0.1 µGVy/h (at a distance of 5cm from external housing)
Image System
- Technical Principle: Dual-energy X-ray Imaging; Double L Shaped Array,
- Image Display: High resolution of 1280×1024;
- Image Enhancement: 1-64times enlargement continuity, Colour/BW, negative, high/low
- penetration, organic /inorganic Stripping, general enhancement, and pseudo colour, etc.
- Image Recall: All preceding images recallable
- Explosives & drugs Detection: Explosives & narcotics alarm and highlight according to atomic number signature
- High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
- Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
- Image Archive: Up to 120,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
- Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training.
- Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
- Images process: 24bit real time processing ,5 colour analysis, Images displayed marked date and ID NO ,Count the number of bags
- Memory gray level:65536
X-ray Generator
- Generate direct: from top to bottom
- Anode Voltage: 140-160kv
- Cooling / Duty Cycle: Oil Cooling /100%
Computer Character
- CASE: chassis ATX/Matx chassis
- Power: 80+bronze ps/2 sps 300w ATX(DELTA)ROHS
- Main board: H61,LAG 1155 Micro ATX,2VGA/LVDS/(DVI optional)/10*com/1*LPT/2GeLAN/PCI/
- PCIe/AMP/10*USB
- CPU: Celeron 2.5G 3m 1155p G540(G)
- Storage: 2G DDR3-1333 240PIN 256X8 HYX(g)TS 5KNN 28100-3Y
- Hard Disk: SEAGATE 500G 3.5″ IDE 5KRPM(G)
Other Characters
- Extension Rollers: Optional (100cm length roller)
- UPS camera system and photographic system Optional
- Support card reader operator access (optional)
- CD DVR/RW unit: Optional
- Computer system: XP system
- Monitor optional: 17 inch DELL brand
Operating Environment
- Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
- Storage Temperature/Humidity: -40°C~+60°C / 5%~95% (non-condensing)
