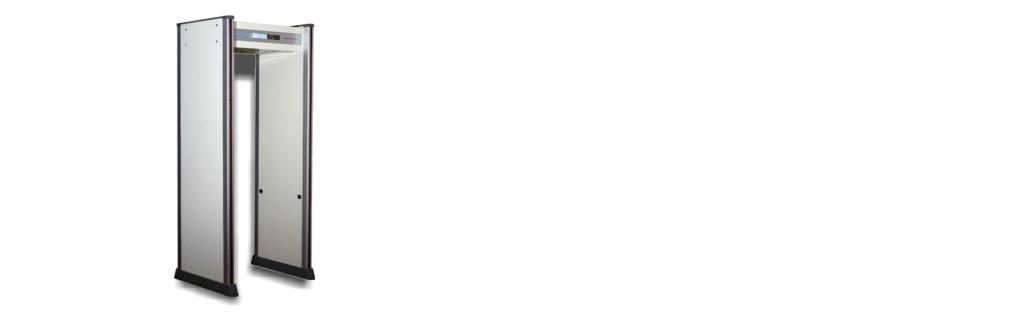

PS-300B

ModelNo.:PS-300B

General Specification

  • Perfect weather-proofing design for outdoor use
  • Easy to Install
  • Simple to Operate Technical specification
  • Electric current: AC 215V~230V 50/60Hz
  • Power : 35W Work environment: -20~+45
  • Gross Weight: 95kg
  • Outerframe : 2220mm(h ) x 880mm(w ) x 610mm(d)
  • Innerframe: 2000mm(h) x760mm(w) x 610mm(d)

Characteristic:

  • 6 Pinpoint zone to precisely identify multiple target locations from head to toe.
  • Advanced broadband detection technology : can detect ferrous and Non-ferrous articles.
  • Sensitivity adjustable from Level 0 to299 High :Can detect a pin Low: Detect big metal articles such as :knife , gun ,and copper ,aluminum, zinc(more than150g) ,ignoring metal in belt button , shoes.
  • Shock proof to avoid false alarm .Sound and light alarm
  • Tamper-Proof: operate programs protected by password.
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  • Adjustable operating frequencies—eliminate the potential effects from X-ray units , radios and other electrical interference distance between walk though detectors: 0.3m at low sensitivity and 0.5m at high sensitivity
  • Harmless to pregnant woman and heart pacemaker.
  • Four LED light bars on both door panels: gives alarm corresponding to the Height on the body
  • With Remote controller/ LCD screen show operation steps in English .Superior Versatility : Settings designed for airports , courthouse , Sports meeting , Casino , Electronics factory and Hardware factory
  • Networking : Remote ability with Desktop Remote Control.(Optional)
  • Perfect Waterproof design : Can work outdoors as well .Users can choose 6,12or18 zones freely to work.

Standard:

  • In accordance with:EN60950,WN50081-1,AndEN50082-1
  • CECertificate;ISO9001:2000Certificate, National standard
  • Function : Walkthrough Metal Detector can easily detect weapons , such as knife and gun , and any metal article which is hidden on the body.
